fail - measured over 48936 pixels carrying ink in either image.
These results are not meaningful. This check renders a single static frame, and nothing in a test document records which moment in time its reference image was captured at - so a correct SMIL implementation and a broken one are equally likely to mismatch. Animation behaviour is covered by dedicated unit tests instead; see ctgnz/foxglove#208 for a real measurement methodology, still to be worked out.

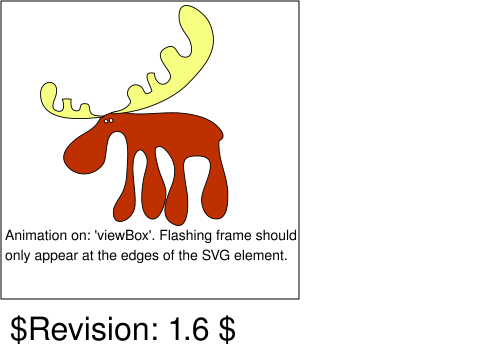

W3C reference (context only, see #200)
Foxglove
Difference

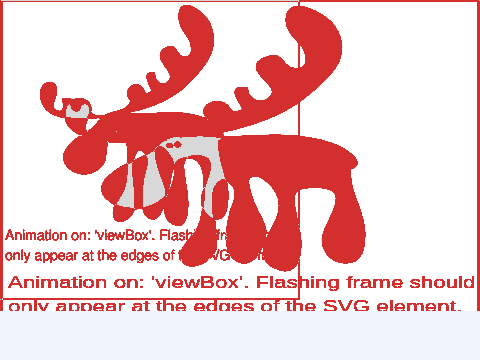

In the difference panel, red marks pixels that
differ beyond tolerance and grey marks matching content. The tinted band, where present, is the
<text id="revision"> legend every test carries: it renders in a fallback font this
library cannot match, so it is excluded from the comparison entirely rather than failing every test.
What this test checks
The viewBox changes position and size several times. At each new setting, a green indicator frame will flash a couple of times. This frame must only appear at the edges of the SVG element.
