interact-events-203-t

64.6% of the ink matches

fail - measured over 24137 pixels carrying ink in either image.

These results are not meaningful, by design. This test's pass criteria require scripted or user-driven interaction (a click, a DOM call) that foxglove itself never supplies - foxglove renders SVG into JavaFX Nodes, and interaction is the consuming application's responsibility, not this library's. This category is expected to remain near 0% permanently; see ctgnz/foxglove#201.

W3C reference (context only, see #200)

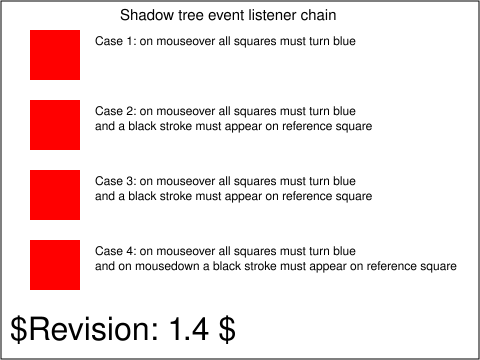

Foxglove

Difference

In the difference panel, red marks pixels that differ beyond tolerance and grey marks matching content. The tinted band, where present, is the <text id="revision"> legend every test carries: it renders in a fallback font this library cannot match, so it is excluded from the comparison entirely rather than failing every test.

What this test checks

This test contains four cases. The cases must produce the following results for the test to pass. Case 1: On a mouseover event on the top square, all four squares must turn blue. Case 2: On a mouseover event on the top middle square, all four squares must turn blue and a black stroke must appear on the referencing square (element). Case 3: On a mouseover event on the bottom middle square, all four squares must turn blue and a black stroke must appear on the referencing square (element). Case 4: On a mouseover event on the bottom square, all four squares must turn blue, and on a mousedown event a black stroke must appear on the referencing square (element).

View the source document at W3C
