interact-pevents-09-f

75.9% of the ink matches
fail - measured over 38612 pixels carrying ink in either image.
These results are not meaningful, by design. This test's pass criteria require scripted or user-driven interaction (a click, a DOM call) that foxglove itself never supplies - foxglove renders SVG into JavaFX Nodes, and interaction is the consuming application's responsibility, not this library's. This category is expected to remain near 0% permanently; see ctgnz/foxglove#201.

W3C reference (context only, see #200)

W3C reference (context only, see #200)

Foxglove

Foxglove

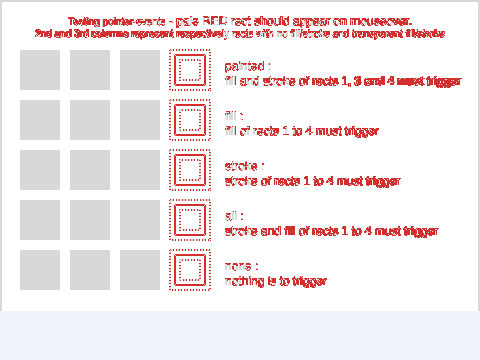

Difference

Difference
In the difference panel, red marks pixels that differ beyond tolerance and grey marks matching content. The tinted band, where present, is the <text id="revision"> legend every test carries: it renders in a fallback font this library cannot match, so it is excluded from the comparison entirely rather than failing every test.

What this test checks

The test is passed if the following conditions are met: In the first row of squares, the fill and stroke of squares 1, 3 and 4 only must trigger a pale red rectangle to appear over the squares on mouseover. In the second row of squares, the fill only of all squares must trigger a pale red rectangle to appear over the squares on mouseover. In the third row of squares, the stroke only of all must trigger a pale red rectangle to appear over the squares on mouseover. In the fourth row of squares, the fill and stroke of all squares must trigger a pale red rectangle to appear over the squares on mouseover. In the fifth row of squares, nothing is to trigger on mouseover.

View the source document at W3C
