linking-uri-03-t

76.8% of the ink matches
fail - measured over 18185 pixels carrying ink in either image.

W3C reference (context only, see #200)

W3C reference (context only, see #200)

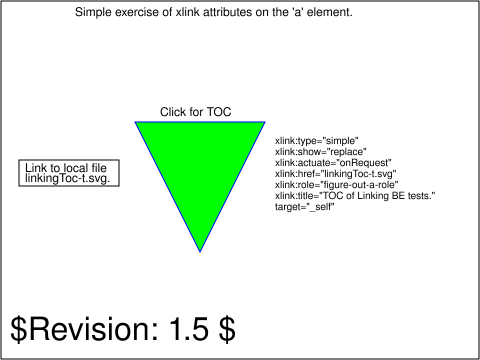

Foxglove

Foxglove

Difference

Difference
In the difference panel, red marks pixels that differ beyond tolerance and grey marks matching content. The tinted band, where present, is the <text id="revision"> legend every test carries: it renders in a fallback font this library cannot match, so it is excluded from the comparison entirely rather than failing every test.

What this test checks

There is a link on the triangle, pointing to an external SVG file, which is local (in the same directory). The target file contains SVG 'text' elements which comprise a TOC and brief description of all of the BE test files for Linking. Upon clicking the triangle, the image of the linkingToc-t.svg file should replace the initial view of this test case in the viewer frame. The results of executing the link should be identical to executing the first (topmost) link of linking-a-04-t.

View the source document at W3C
