masking-path-07-b

93.0% of the ink matches
fail - measured over 61248 pixels carrying ink in either image.

W3C reference (context only, see #200)

W3C reference (context only, see #200)

Foxglove

Foxglove

Difference

Difference

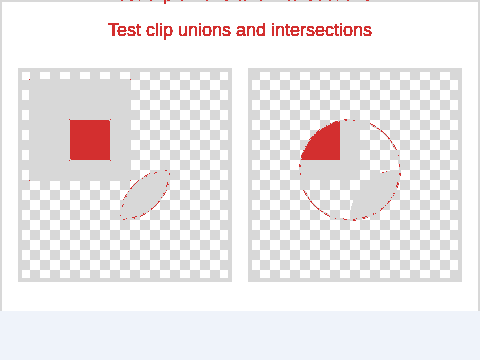

In the difference panel, red marks pixels that differ beyond tolerance and grey marks matching content. The tinted band, where present, is the <text id="revision"> legend every test carries: it renders in a fallback font this library cannot match, so it is excluded from the comparison entirely rather than failing every test.

What this test checks

The test has passed if the following conditions are met: There is no red visible. No shapes extend outside of the rects that have a thick black border. For the left subtest: There must be a large blue rect with a transparent smaller rect in it, and the intersection of two circles. The borders of the clipregions are shown with black stroke. The blue shapes must be visible only inside of these stroked regions. For the right subtest: The test on the right must show part of the large blue rect shape with a transparent rect in it, and part of a circle. The blue shapes must only be visible inside of the circle that has black stroke.

View the source document at W3C
