struct-image-06-t

93.4% of the ink matches
pass - measured over 10145 pixels carrying ink in either image.

W3C reference (context only, see #200)

W3C reference (context only, see #200)

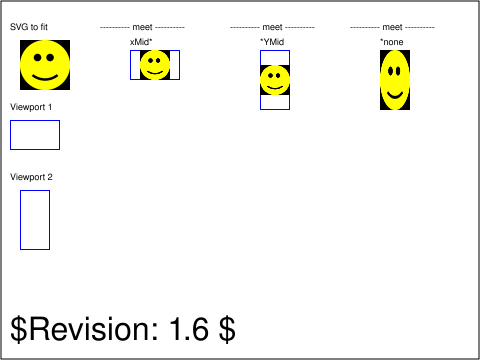

Foxglove

Foxglove

Difference

Difference
In the difference panel, red marks pixels that differ beyond tolerance and grey marks matching content. The tinted band, where present, is the <text id="revision"> legend every test carries: it renders in a fallback font this library cannot match, so it is excluded from the comparison entirely rather than failing every test.

What this test checks

The test shows four smiley images: the leftmost one is the reference, and the three on the right are the three sub-tests. The test is passed if the following conditions are met: The image in the first sub-test is shown within the blue rectangle, its aspect ratio preserved and with white bars between the blue rectangle and the left and right edges of the image. The image in the second sub-test is shown within the blue rectangle, its aspect ratio preserved and with white bars between the blue rectangle and the top and bottom edges of the image. The image in the third sub-test is shown stretched, having the same size as the blue rectangle shown on the left of the test slide underneath the text "Viewport 2".

View the source document at W3C
